ATMEGA16A-AU: Your Guide to High-Performance Microcontrollers

ymn@deirchip.com

·November 19, 2024

·8 min read

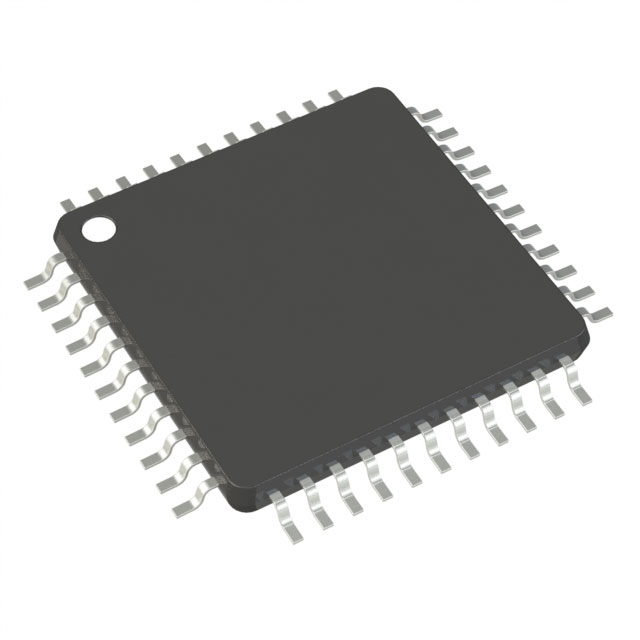

ATMEGA16A-AU: Your Guide to High-Performance Microcontrollers — Image Source: https://deirchip.com/

The ATMEGA16A-AU is a standout high-performance microcontroller from MICROCHIP, renowned for its exceptional efficiency and reliability. As part of the AVR series, this microcontroller excels in executing powerful instructions within a single clock cycle, delivering 1 MIPS per MHz. Its low power consumption makes it an ideal choice for battery-operated devices. The ATMEGA16A-AU is designed to handle complex tasks, ensuring robust performance in embedded system development. Its architecture facilitates seamless integration into various applications, enhancing your development experience. Discover the potential of the ATMEGA16A-AU, MICROCHIP, Microcontrollers - High Performance AVR Series Embedded System Development for your projects. For more detailed specifications, visit https://www.alldatasheet.com/datasheet-pdf/view/25.

Overview of ATMEGA16A-AU, MICROCHIP, Microcontrollers - High Performance AVR Series Embedded System Development

Specifications

Processing power and speed

The ATMEGA16A-AU microcontroller offers impressive processing power. It operates at a clock speed of up to 16 MHz. This speed allows you to execute instructions efficiently, making it suitable for various demanding applications. The microcontroller's ability to deliver 1 MIPS per MHz ensures that you can achieve high performance in your projects.

Memory capacity

Memory capacity is crucial for storing and processing data. The ATMEGA16A-AU provides 16 KB of in-system programmable (ISP) flash memory. This feature allows you to store your programs and update them as needed. Additionally, it includes 2 KB of SRAM and 512 bytes of EEPROM, offering ample space for data storage and retrieval.

Power consumption

Low power consumption is a key advantage of the ATMEGA16A-AU. This microcontroller is designed to operate efficiently, making it ideal for battery-operated devices. You can rely on its power-saving features to extend the life of your applications without compromising performance.

Architecture

AVR architecture details

The ATMEGA16A-AU utilizes a modified Harvard architecture. This design allows simultaneous access to program and data memory, enhancing overall performance. You can benefit from this architecture by achieving faster data processing and improved system efficiency.

Integrated peripherals

Integrated peripherals are essential for expanding the functionality of a microcontroller. The ATMEGA16A-AU includes a variety of peripherals such as ADC, UART, SPI, and more. These interfaces enable you to connect and communicate with other devices seamlessly, enhancing the versatility of your embedded system development.

Unique Features

Advanced interrupt handling

Advanced interrupt handling is a standout feature of the ATMEGA16A-AU. This capability allows you to manage multiple tasks efficiently, ensuring that your applications respond promptly to external events. You can rely on this feature to enhance the real-time performance of your systems.

Enhanced I/O capabilities

Enhanced I/O capabilities provide you with greater flexibility in designing your applications. The ATMEGA16A-AU offers a wide range of input and output options, allowing you to interface with various sensors and actuators. This flexibility ensures that you can tailor your designs to meet specific requirements.

Applications of ATMEGA16A-AU in Embedded Systems

Consumer Electronics

Home automation systems

You can transform your living space with home automation systems powered by the ATMEGA16A-AU. This microcontroller enables seamless control of lighting, security, and climate systems. Its efficient processing power ensures that your smart home devices respond quickly to your commands. By integrating the ATMEGA16A-AU, you enhance the convenience and energy efficiency of your home.

Smart appliances

Smart appliances become more intelligent with the ATMEGA16A-AU. You can use this microcontroller to manage and optimize the performance of devices like refrigerators, washing machines, and ovens. Its advanced features allow for precise control and monitoring, ensuring that your appliances operate at peak efficiency. The ATMEGA16A-AU helps you create a connected and efficient home environment.

Industrial Automation

Robotics

In robotics, the ATMEGA16A-AU plays a crucial role. You can rely on its robust architecture to control robotic arms, sensors, and actuators. This microcontroller provides the precision and reliability needed for complex robotic tasks. Whether you're developing industrial robots or educational kits, the ATMEGA16A-AU offers the performance you need to succeed.

Process control systems

Process control systems benefit greatly from the ATMEGA16A-AU's capabilities. You can implement this microcontroller to monitor and regulate industrial processes with high accuracy. Its ability to handle real-time data ensures that your systems maintain optimal performance. The ATMEGA16A-AU supports efficient and reliable process management in various industrial settings.

Automotive Systems

Engine control units

Engine control units (ECUs) require precise and reliable microcontrollers like the ATMEGA16A-AU. You can use this microcontroller to manage engine functions, ensuring optimal performance and fuel efficiency. Its advanced interrupt handling and processing power make it ideal for automotive applications. The ATMEGA16A-AU helps you achieve superior engine control and performance.

Infotainment systems

Infotainment systems in vehicles become more interactive and responsive with the ATMEGA16A-AU. You can integrate this microcontroller to manage audio, video, and navigation functions. Its enhanced I/O capabilities allow for seamless connectivity with various devices. The ATMEGA16A-AU enhances the user experience in modern vehicles, providing entertainment and information at your fingertips.

Advantages of Using ATMEGA16A-AU for High Performance

Efficiency

Low power consumption

You will appreciate the low power consumption of the ATMEGA16A-AU. This microcontroller operates efficiently, making it perfect for battery-operated devices. Its design allows you to optimize power usage without sacrificing performance. With a supply voltage range of 2.7V to 5.5V, it ensures that your applications run longer on less power.

High processing speed

The ATMEGA16A-AU delivers high processing speed, operating at a frequency of up to 16 MHz. This speed enables you to execute instructions swiftly, achieving 1 MIPS per MHz. You can rely on this microcontroller to handle demanding tasks with ease, ensuring that your projects perform at their best.

Reliability

Robust design

You can count on the robust design of the ATMEGA16A-AU. Its architecture provides stability and durability, making it suitable for various applications. The microcontroller's construction ensures that it withstands challenging environments, offering you peace of mind in your embedded system development.

Long operational life

The ATMEGA16A-AU promises a long operational life. Its reliable components and efficient design contribute to its longevity. You can trust this microcontroller to support your projects over extended periods, reducing the need for frequent replacements and maintenance.

Support for Complex Tasks

Multi-tasking capabilities

You will find the multi-tasking capabilities of the ATMEGA16A-AU impressive. This microcontroller manages multiple tasks simultaneously, enhancing the efficiency of your applications. Its advanced interrupt handling allows you to prioritize tasks effectively, ensuring that your systems respond promptly to various inputs.

Real-time processing

Real-time processing is a key feature of the ATMEGA16A-AU. You can depend on its ability to process data in real-time, making it ideal for applications requiring immediate responses. This capability ensures that your systems operate smoothly and efficiently, meeting the demands of modern embedded system development.

Development Tools and Resources for ATMEGA16A-AU

Available Development Tools

IDEs and compilers

You have access to a variety of Integrated Development Environments (IDEs) and compilers for the ATMEGA16A-AU. These tools simplify the process of writing, compiling, and debugging your code. Popular choices include Atmel Studio and AVR-GCC. Atmel Studio provides a comprehensive environment with features like code completion and project management. AVR-GCC offers a robust compiler that supports the AVR architecture, ensuring efficient code generation.

Debugging tools

Debugging tools are essential for identifying and resolving issues in your projects. You can use tools like Atmel-ICE and AVR Dragon for debugging the ATMEGA16A-AU. These tools allow you to set breakpoints, inspect variables, and step through your code. By using these debugging tools, you can ensure that your applications run smoothly and efficiently.

Libraries and Frameworks

Pre-built libraries

Pre-built libraries save you time by providing ready-to-use functions and modules. You can find libraries for various peripherals and communication protocols, such as SPI and I2C. These libraries simplify the integration of the ATMEGA16A-AU into your projects. By leveraging pre-built libraries, you can focus on developing unique features and functionalities.

Community-contributed resources

The community around the ATMEGA16A-AU is active and supportive. You can access a wealth of community-contributed resources, including open-source libraries and example projects. These resources provide valuable insights and solutions to common challenges. By engaging with the community, you can enhance your knowledge and improve your development skills.

Learning Resources

Tutorials and guides

Tutorials and guides offer step-by-step instructions for using the ATMEGA16A-AU. You can find resources that cover topics from basic programming to advanced system design. These materials help you understand the microcontroller's features and capabilities. By following tutorials and guides, you can build a strong foundation in embedded system development.

Online forums and communities

Online forums and communities are excellent places to connect with other developers. You can join platforms like AVR Freaks and Stack Overflow to ask questions and share experiences. These communities provide support and advice on various aspects of using the ATMEGA16A-AU. By participating in online discussions, you can stay updated on the latest trends and best practices.

The ATMEGA16A-AU microcontroller stands out with its impressive features and benefits. You will find its ability to execute powerful instructions in a single clock cycle remarkable, achieving up to 1 MIPS per MHz. This efficiency makes it ideal for high-performance embedded system applications. Its low power consumption ensures that your projects run longer without sacrificing speed. Explore the available development tools and resources to harness the full potential of the ATMEGA16A-AU. By doing so, you can create innovative solutions tailored to your specific needs.
